Air Clean Care Technology

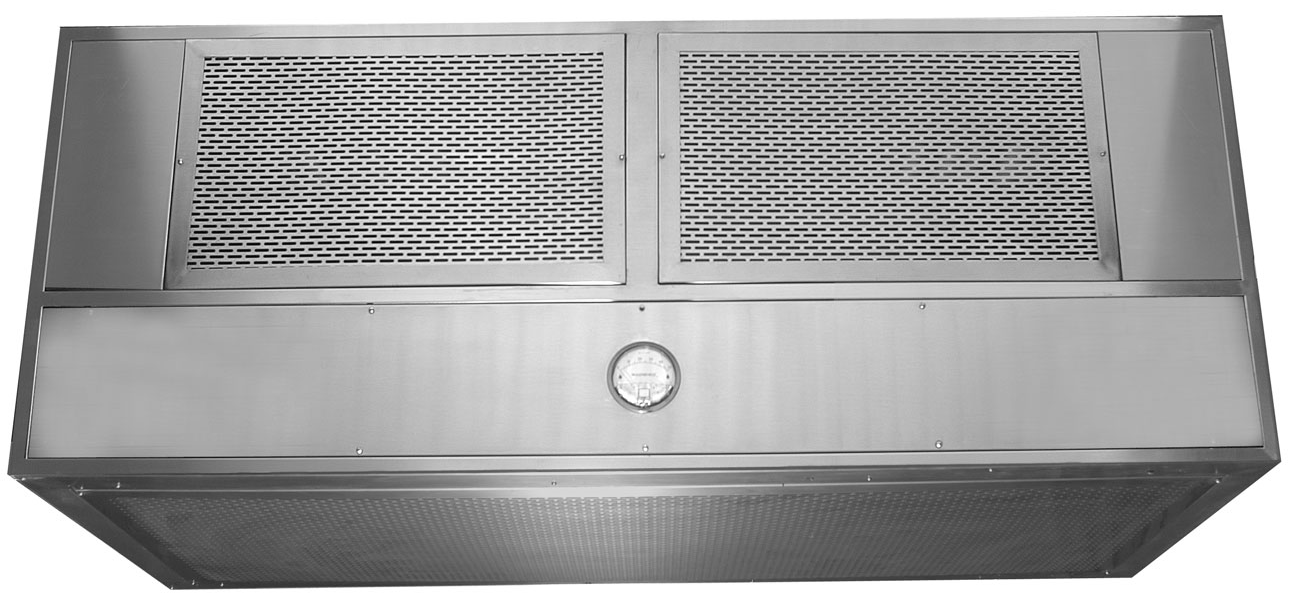

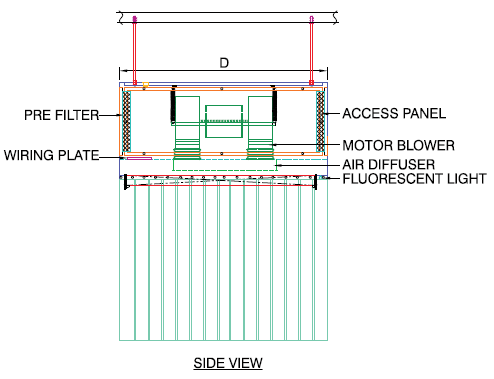

EXTERNAL DIMENSIONS
HEPA FILTER SIZE	W	D	H
6'X4'	1950	1345	665
4'X4'	1325	1345	665
4'X2'	1325	735	665
3'X2'	995	735	665

Sr.No.	Item	Description
1)	MOC	SS 304 / SS 316 / Customised
2	HEART OF SYSTEM COMPRISES OF
2.1	1325	Imported minipleat HEPA Filter with hot melt technology, which conforms to EU-13 / EU-14 Grade
2.2		Pharma air make Fresh Air prefilter which conforms to EU 6 Grade, with efficiency of 95% down to 5µ
2.3		Motor Blower provided are statically and dynamically balanced, Sufficient capacity and static pressure is maintained to take care of airflow requirement for entire life to HEPA.
2.4		Magnehelic Differential Pressure Gauge across Supply HEPA Filter
2.5		Fluorescent Light ( 250 Lux )
2.6		ON/OFF Swithches for motor & Lights.
2.7		DOP Test post at upstream of HEPA filter
3)	Perfomance
3.1	Air cleanliness	ISO Class 5 (ISO 14644-1:1999) (E)
3.2	Air Velocities	0.45 0.05 mps
3.3	Air Flow	Vertical
3.4	Noise Level	Less than 67dB on Scale 'A' when Ambient is not greater then 55dB on Scale 'A'
3.5	Vibration Level	Minimum
4)	POWER SUPPLY	230 V AC 1- 0 50HZ

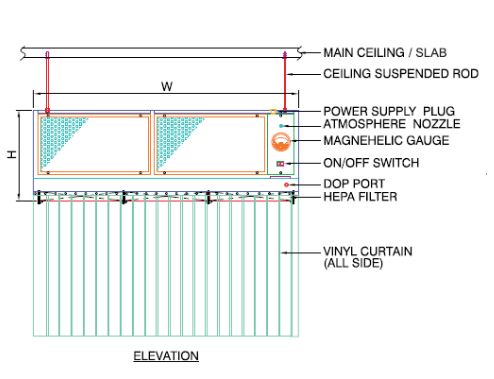

Optional Accessories

Vinyl Curtain/ Polycarbonate enclosures on all sides
SS Perforated Safety Grill for HEPA Filter
5/15 Amp single-phase switch socket
Audio Visual Alatm Indicating Condition of HEPA Filters

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
HEPA FILTERSIZE	W	D	H	W	D	H
6'X4'	1900	1295	610	1980	1375	1440
4'X4'	1275	1295	610	1355	1375	1440
4'X2'	1275	685	610	1355	765	1440

Sr.No.	Item	Description
1)	MOC	SS 304 / SS 316 / Customised
2	HEART OF SYSTEM COMPRISES OF
		Imported minipleat HEPA Filter with hot melt technology, which conforms to EU-13 / EU-14 Grade
		Pharma air make Fresh Air prefilter which conforms to EU 6 Grade, with efficiency of 95% down to 5µ
		Motor Blower provided are statically and dynamically balanced, Sufficient capacity and static pressure is maintained to take care of airflow requirement for entire life to HEPA.
		Magnehelic Differential Pressure Gauge across Supply HEPA Filter
		Fluorescent Light ( 250 Lux )
		ON/OFF Swithches for motor & Lights.
3)	Perfomance
3.1	Air cleanliness	ISO Class 5 (ISO 14644-1:1999) (E)
3.2	Air Velocities	0.45±_0.05 mps
3.3	Air Flow	Vertical
3.4	Noise Level	Less than 67dB on Scale 'A' when Ambient is not greater then 55dB on Scale 'A'
3.5	Vibration Level	Minimum
4)	POWER SUPPLY	230 V AC 1- 0 50HZ

Optional Accessories

Vinyl Curtain
Polycarbonate enclosures with Front Door (Hinged/Pneumatic Cylinder)
SS Perforated Safety Grill for HEPA Filter
5115 Amp single-phase switch socke
Audio Visual AlarmIndicating Condition of HEPA Filters,
U.V. Light with Hourmeter
Air/ Gas Cock

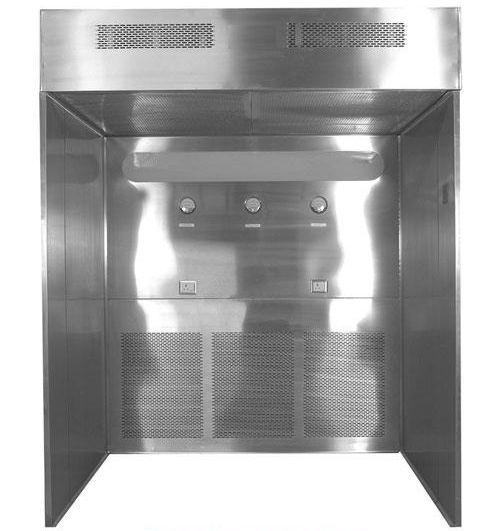

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
HEPA FILTERSIZE	W	D	H	W	D	H
6'X6'	1900	2500	2170	2004	1900	2475
6'X4'	1900	1260	2170	2004	1860	2475
4'X4'	1275	1260	2170	1379	1860	2475

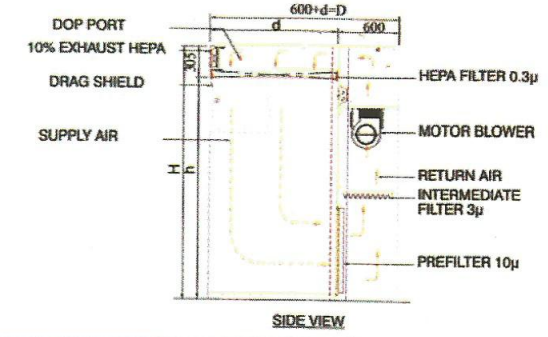

Sr.No.	Item	Description
1)	MOC	SS 304 / SS 316 / Customised
2	HEART OF SYSTEM COMPRISES OF
2.1		Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU-13/EU-14 Grade at supply position
2.2		Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU-13/EU-14 Grade at exhaust position
2.3		Pharma air make prefilter which conforms to EU 4 Grade, with efficiency of 90% down to 10 µ
2.4		Pharma air make Intermediate filter which conforms to EU 7
2.5		Motor Blower provided are statically and dynamically balanced sufficient capacity and static pressure is maintained to take care of airflow requirement for entire life to HEPA.
2.6		SS 304 Double Walled Side Panels.
2.7		Magnehelic Differential Pressure Gauge (0-25 mm: 2 Nos.) to monitor pressure drop across intermediate filter & HEPA filter and (0-10 mm 1 No.) across Prefilter
2.8		Electrical control panel mounted on the side panle of the unit.
2.9		Fluorescent Light (250 Lux)
2.10		ON/OFF Switches for motor & Lights.
2.11		DOP Test Port at upstream of HEPA filter
3)	Perfomance
3.1	Air cleanliness	ISO Class 5 (ISO 14644-1:1999) (E)
3.2	Air Velocities	0.45 ± 0.05 mps
3.3	Air Flow	Vertical - Recirculatory
3.4	Noise Level	Less than 67dB on Scale 'A' when Ambient is not greater then 55dB on Scale 'A'
3.5	Vibration Level	Minimum
4)	POWER SUPPLY	230 V AC 1- 0 50HZ

Optional Accessories

SS Perforated Safety Grill for HEPA Filter
Front Anti Static PVC Curtains (for warehouse applications)
Front doors (hinged)
SS Perforation table for keeping weighing scale.
Sodium Vapor Lamps
Audio Visual Alarm indicating condition of HEPA Filters
Flame Proof Fitting
VFD based Control systems
Safe change Bag in/Bag out arrangement for filters
5/15 Amp single - phase switch socket

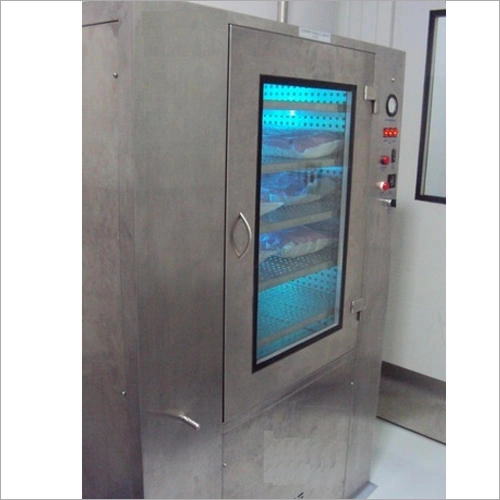

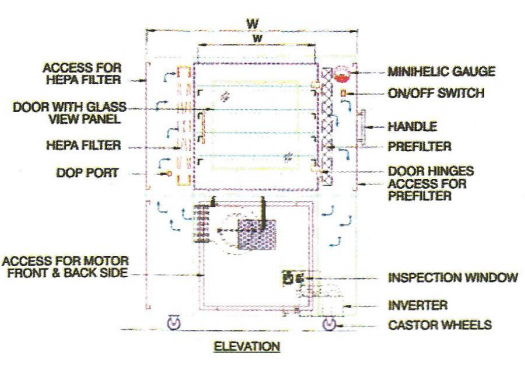

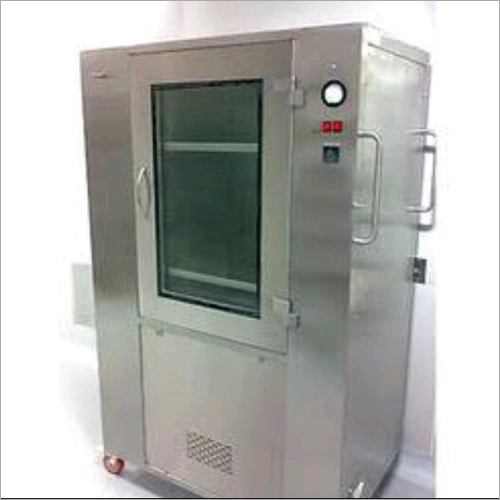

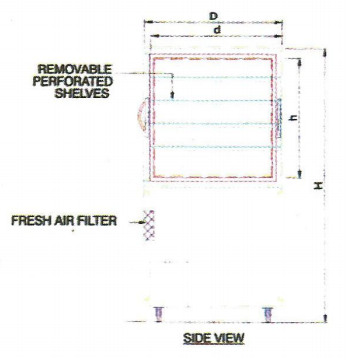

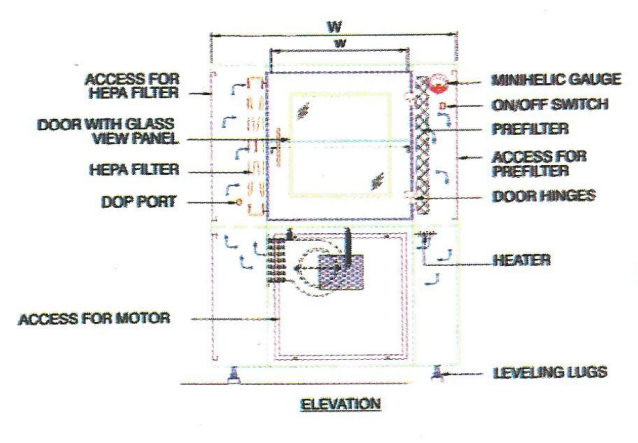

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
W	D	H	W	D	H
1000	685	620	1490	720	1420
915	990	620	1405	1025	1420
610	685	620	1100	720	1420

Sr.No.	Item	Description
1)	MOC	SS 304 / SS 316 / Customised
2	HEART OF SYSTEM COMPRISES OF
2.1	1325	Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU-13/EU-14 Grade at supply position 0.3 µ at supply position
2.2		Pharma air make Fresh Air prefilter which conforms to EU 6 Grade, with efficiency of 95% down to 5µ
2.3		Motor Blower provided are statically and dynamically balanced, Sufficient capacity and static pressure is maintained to take care of airflow requirement for entire life to HEPA.
2.4		Minihelic Gauge
2.5		Fluorescent Light ( 250 Lux )
2.6		ON/OFF Swithches for motor & Lights.
2.7		Mounting : Unique Spring Suspension System to take Care of Vibration and Noise.
2.8		DOP Test post at upstream of HEPA filter
3)	Perfomance
3.1	Air cleanliness	ISO Class 5 (ISO 14644-1:1999) (E)
3.2	Air Velocities	0.45 ± 0,05 mps

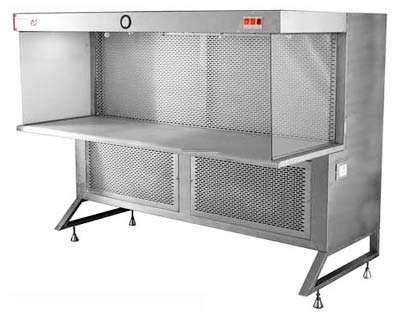

3.3	Air Flow	Horizontal Recirculatory
3.4	Noise Level	Less than 67 dB on Scale 'A' when Ambient is not greater then 55dB on Scale 'A'
3.5	Vibration Level	Minimum
4)	POWER SUPPLY	230 V AC 1- 0 50HZ

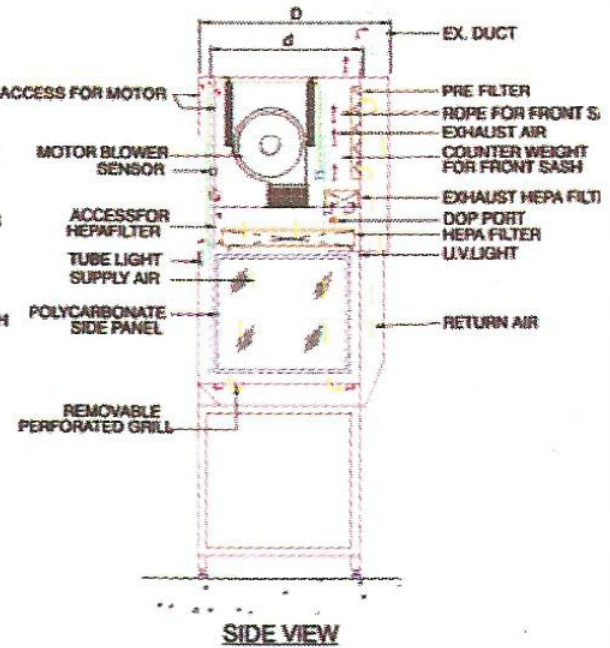

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
HEPA FILTERSIZE	W	D	H	W	D	H
6'X2'	1830	610	610	2045	900	2310
4'X2'	1220	610	610	1400	900	2310
3' X2'	915	610	610	1095	900	2310

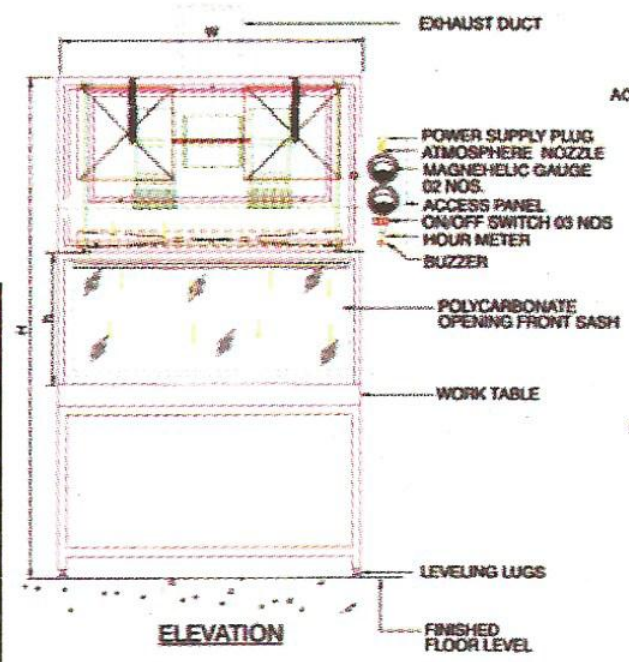

Sr.No.	Item	Description
1)	MOC	SS 304 / SS 316 / Customised
2	HEART OF SYSTEM COMPRISES OF
2.1		Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU-13/EU-14 Grade at supply position
2.2		Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU-13/EU-14 Grade at exhaust position
2.3		Pharma air make Return Air Prefilter which conforms to EU 6 Grade, with efficiency of 95% down to 5 µ
2.4		Motor Blower provided are statically and dynamically balanced, Sufficient capacity arid static pressure is maintained to take care of airflow requirement for entire life to HEPA.
2.5		Glass side Panels.
2.6		SS 304 perforated work Table which can be readily removed for cleaning.
2.7		Fully openable sliding polycarbonate front door with counter weight arrangement
2.8		Magnehelic Differential Pressure Gauge
2.9		Sealed white light with milky acrylic diffuse
2.10		Interlocking of supply & exhaust motor blower with logic control to ensure the system stops if either motor stops
2.11		Alarm triggers in case front doors is raised more than 8
2.12		ON/OFF Switches for motor & Lights
2.13		DOP Test Port at upstream of HEPA filter
2.14		Small elbow duct for exhaust.
3)	Perfomance
3.1	Air cleanliness	ISO Class 5 (ISO 14644-1:1999) (E)
3.2	Air Velocities	0.45 ± 0.05 mps
3.3	Air Flow	Vertical - Recirculatory
3.4	Noise Level	Less than 67dB on Scale 'A' when Ambient is not greater then 55dB on Scale 'A'
3.5	Vibration Level	Minimum
4)	POWER SUPPLY	230 V AC 1- 0 50HZ

Optional Accessories

Audio Visual Aiarm indicating condition of HEPA Fliters
Flame Proof Fiiting
Front door with Glove arrangement
VFD based Control systems
5/15 Amp single - phase switch socket
U.V. Light with Hour meter

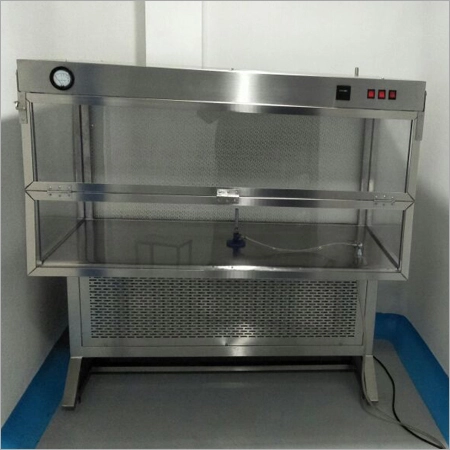

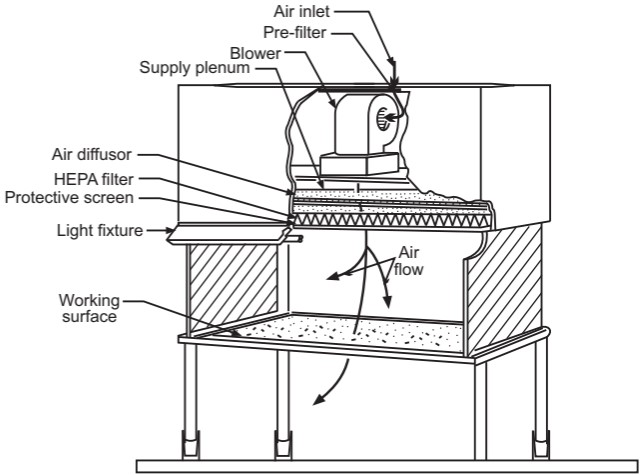

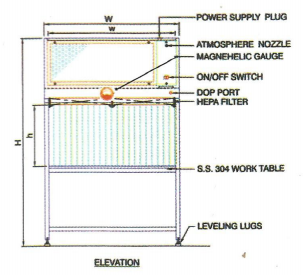

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
HEPA FILTERSIZE	W	D	H	W	D	H
6'X2'	1800	610	570	1960	1375	1440
4'X2'	1180	610	570	1340	1375	1440
3'X2'	875	610	570	1035	765	1440

Sr.No.	Item	Description
1)	MOC	SS 304 / SS 316 / Customised
2	HEART OF SYSTEM COMPRISES OF
2.1		Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU-13 / EU-14 Grade
2.2		Pharma air make Fresh Air prefilter which conforms to EU 6 Grade, with efficiency of 95% down to 5µ
2.3		Motor Blower provided are statically and dynamically balanced, Sufficient capacity and static pressure is maintained to take care of airflow requirement for entire life to HEPA
2.4		Magnehelic Differential Pressure Gauge
2.5		Working Table : S.S. 304 with Due Reinforcement
2.6		Glass side panel.
2.7		Fluorescent Light ( 250 Lux )
2.8		ON/OFF Swithches for motor & Lights.
2.9		5/15 Amp single - phase switch socket for external equipment
2.10		DOP Test Port at upstream of HEPA filte
3)	Perfomance
3.1	Air cleanliness	ISO Class 5 (ISO 14644-1:1999) (E)
3.2	Air Velocities	0.45 ± 0.05 mps
3.3	Air Flow	Vertical
3.4	Noise Level	Less than 67dB on Scale 'A' when Ambient is not greater then 55dB on Scale 'A'
3.5	Vibration Level	Minimum
4)	POWER SUPPLY	230 V AC 1- 0 50HZ

Optional Accessories

Front doors (hinged/Pneumatic Cylinder)
SPerforated Safety Grillhr HEPA Filler
Air / Gas Cock
Audio Visual AlatmIndicating condition of HEPA Filers
U.V. Light with Hour meter
Flame Proof Fitting

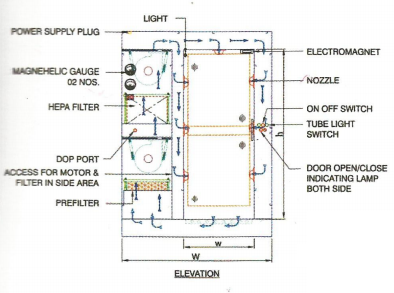

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
W	D	H	W	D	H
1000	685	620	1490	720	1420
915	990	620	1405	1025	1420
610	685	620	1100	720	1420

Sr.No.	Item	Description
1)	MOC	SS 304 / SS 316 / Customised
2	HEART OF SYSTEM COMPRISES OF
2.1	1325	Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU-13/EU-14 Grade at supply position
2.2		Pharma air make Fresh Air prefilter which conforms to EU 6 Grade, with efficiency of 95% down to 5µ
2.3		Motor Blower provided are statically and dynamically balanced, Sufficient capacity and static pressure is maintained to take care of airflow requirement for entire life to HEPA.
2.4		Minihelic Gauge
2.5		ON/OFF Swithches for motor & Lights.
2.6		SS 304 Double Walled doors, SS handles, hinges
2.7		Return Air Grills on side walls
2.8		Electro - Magnetic Interlocking to ensure only one side door will be opened at a time.
2.9		DOP Test Port at upstream of HEPA filter
3)	Perfomance
3.1	Air cleanliness	ISO Class 5 (ISO 14644-1:1999) (E)
3.2	Air Velocities	0.45 ± 0,05 mps
3.3	Air Flow	Vertical - Recirculatory
3.4	Noise Level	Less than 67 dB on Scale 'A' when Ambient is not greater then 55dB on Scale 'A'
3.5	Vibration Level	Minimum
4)	POWER SUPPLY	230 V AC 1- 0 50HZ

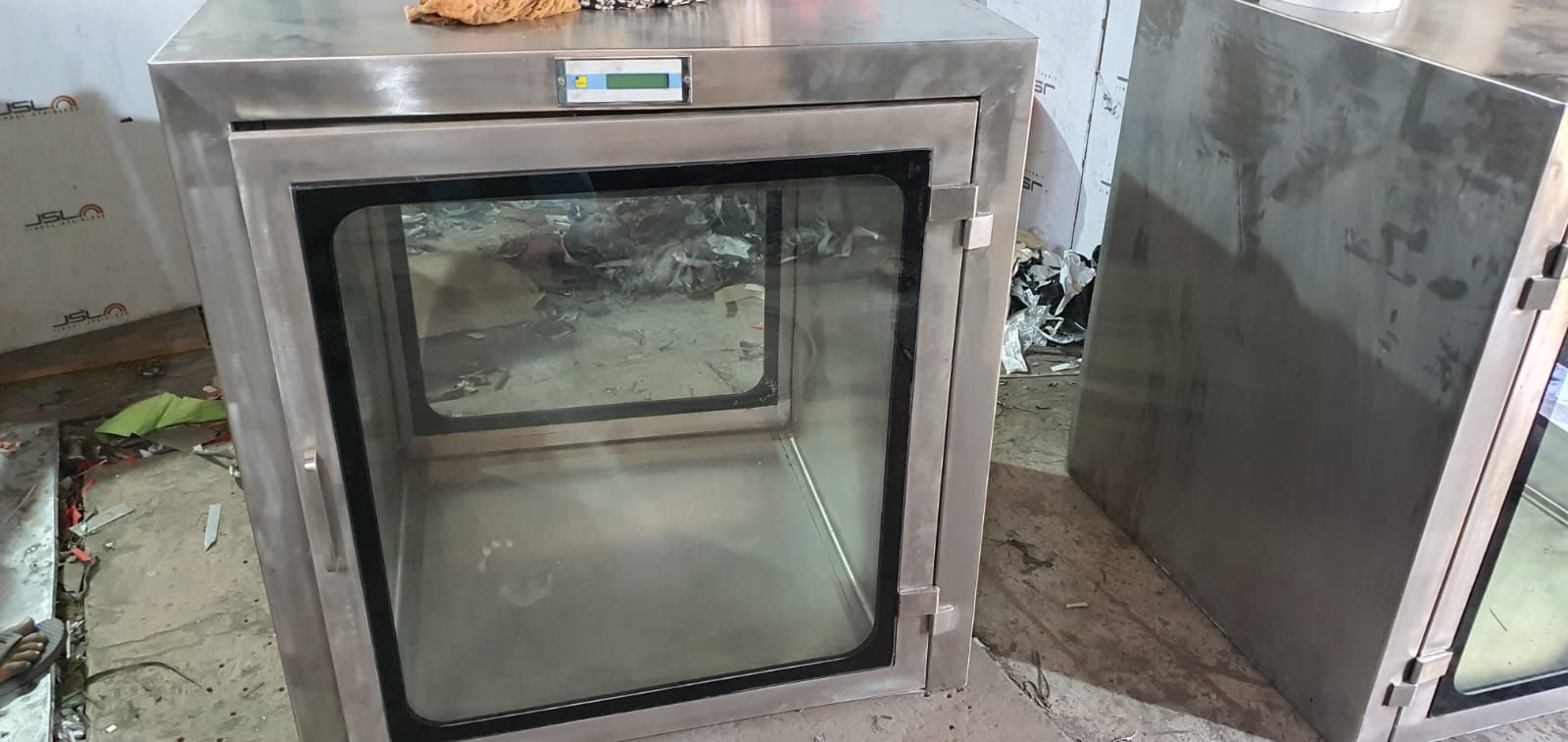

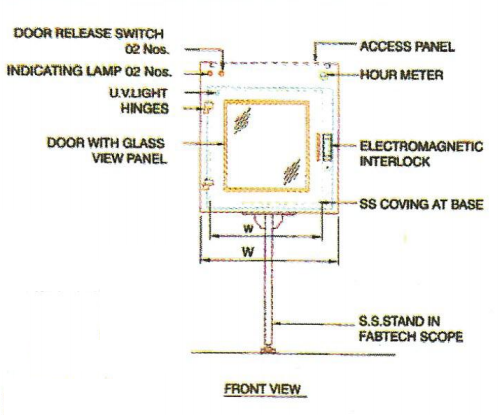

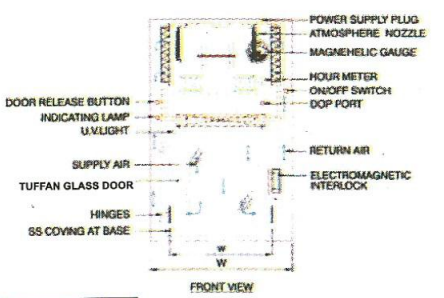

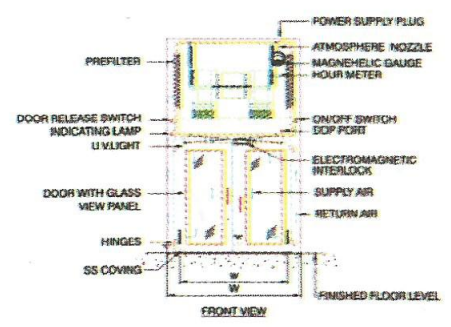

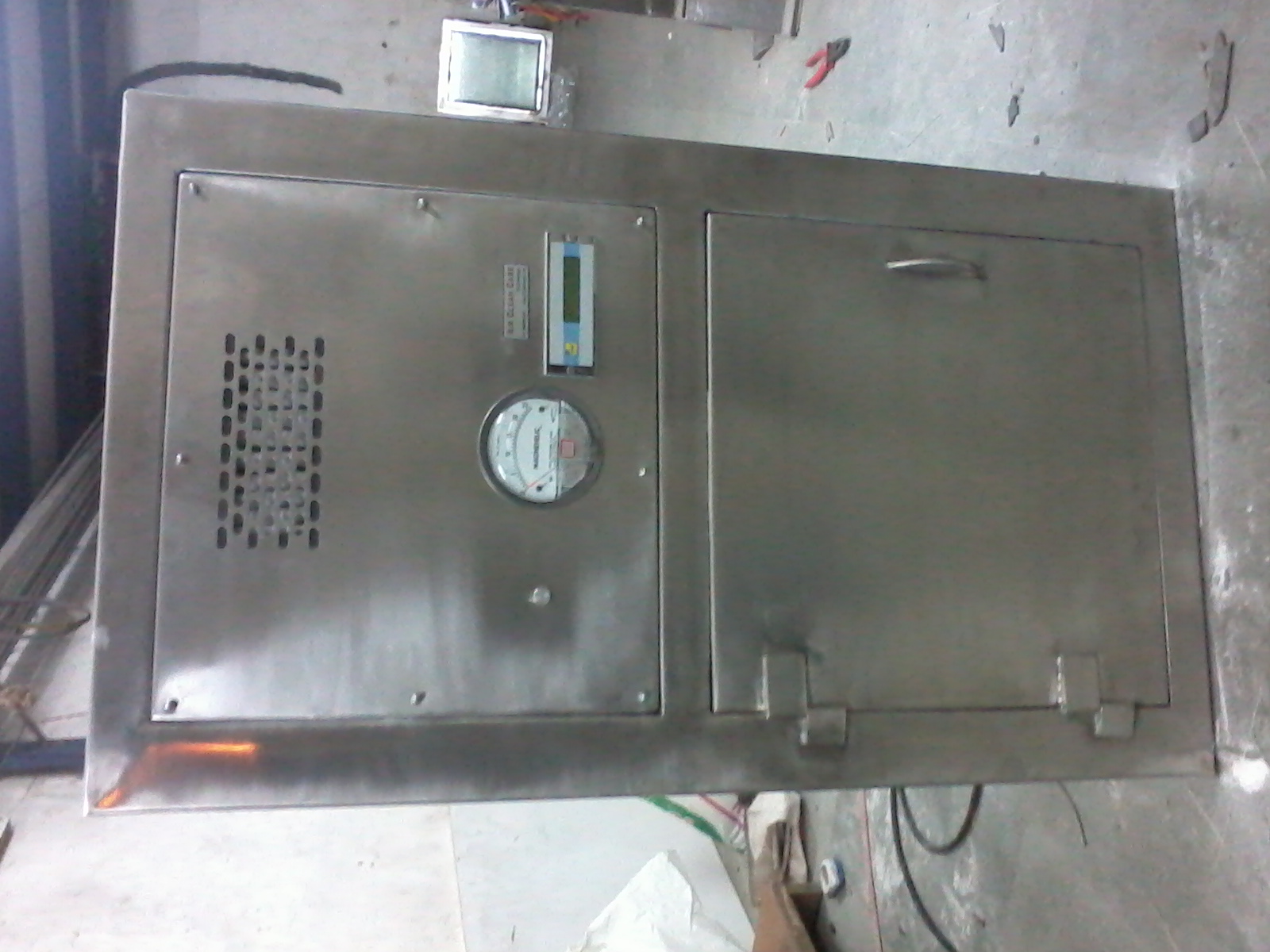

Dynamic Pass Box(Wall Mounted):-

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
W	D	H	W	D	H
875	900	1100	1115	970	1930
700	600	1050	940	670	1880
610	610	610	850	670	1320

Sr.No.	Item	Description
1)	MOC	SS 304 / SS 316 / Customised
2	HEART OF SYSTEM COMPRISES OF
2.1	1325	Imported Miniplet HEPA Filter with hot melt technology, which conforms to EU-13 / EU-14 Grade at supply position
2.2		Motor Blower provided are statically and dynamically balanced, Sufficient capacity and static pressure is maintained to take care of airflow requirement for entire life to HEPA
2.3		Magnehelic Differential Pressure Gauge
2.4		ON/OFF Switches for motor & Lights
2.5		SS 304 double walled doors with glass view panels, SS handles, hinges
2.6		Return Air Grills on side walls
2.7		Indicating Lamp on both sides
2.8		Door release button on both sides
2.9		Electro-Magnetic Interlocking to ensure only one side door will be opened at a time
2.10		DOP Test Port at upstream of HEPA filter
3)	Perfomance
3.1	Air cleanliness	ISO Class 5 (ISO 14644-1:1999) (E)
3.2	Air Velocities	0.45 ± 0,05 mps
3.3	Air Flow	Vertical - Recirculatory
3.4	Noise Level	Less than 67 dB on Scale 'A' when Ambient is not greater then 55dB on Scale 'A'
3.5	Vibration Level	Minimum
4)	POWER SUPPLY	230 V AC 1- 1150HZ

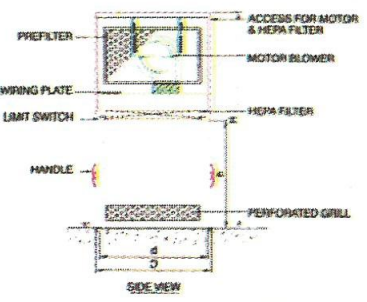

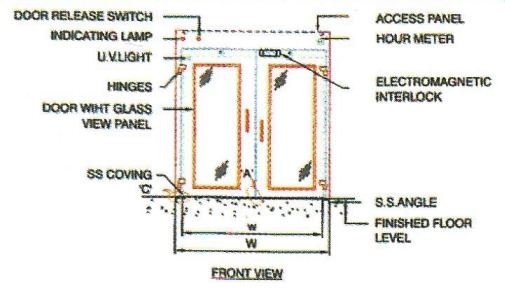

Dynamic Pass Box (Floor Mounted):-

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
W	D	H	W	D	H
1500	1200	1500	1115	1270	2400
1200	1000	1200	1300	1070	2060
1000	1000	1000	1100	1070	1660

Optional Accessories

Mechanical Interlocking
U.V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if either door opens
Support Stand to mount the pass box on wal
Flange for sealing the gap between the pass box and the cleanroomwal
Flame Proof Fitting

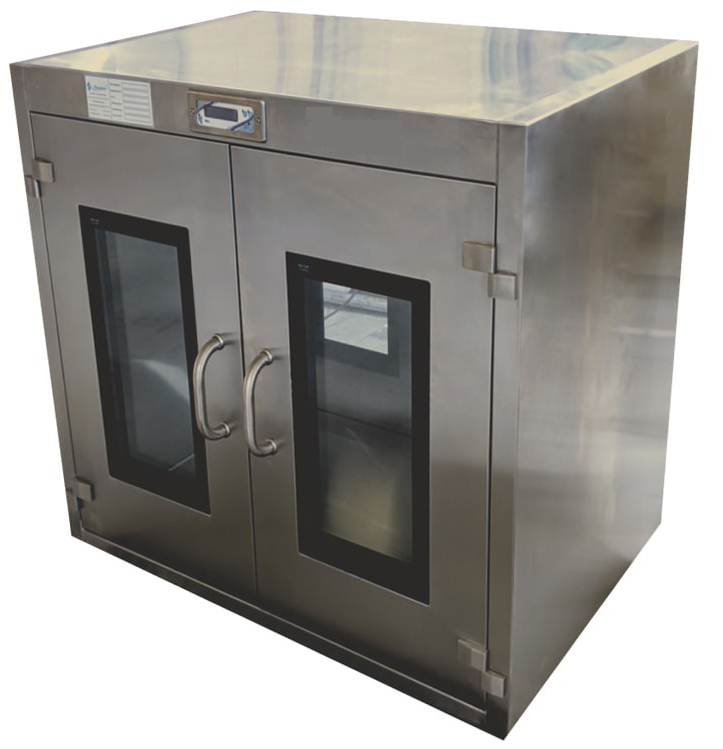

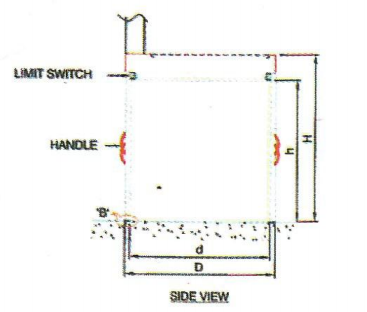

Static Pass Box (Floor Mounted):-

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
W	D	H	W	D	H
1200	1200	1500	1300	1270	1700
1050	1050	1050	1150	1120	1250
1000	1000	1000	1100	1070	1200

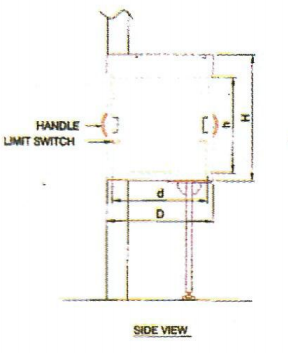

Static Pass Box (Wall Mounted):-

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
W	D	H	W	D	H
800	900	1000	940	970	1150
620	600	700	760	670	850
600	600	600	740	670	800

Sr.No.	Item	Description
1)	MOC	SS 304 / SS 316 / Customised
2	HEART OF SYSTEM COMPRISES OF
2.1	1325	SS 304 double walled doors with glass view panels, SS handles, hinges
2.2		Electro - Magnetic Interlocking to ensure only one side door will be opened at time
2.3		lndocating Lamp on both side
2.4		Door release button on both sides
3)	Power Supply	230 V AC 1- 0 50HZ

Optional Accessories

Mechanical Interlocking
U.V. Light with Hour Meter with interlocking arrangement to put-off U.V. Light if either door opens
Support Stand to mount the pass box on wall
Flame Proof Fitting

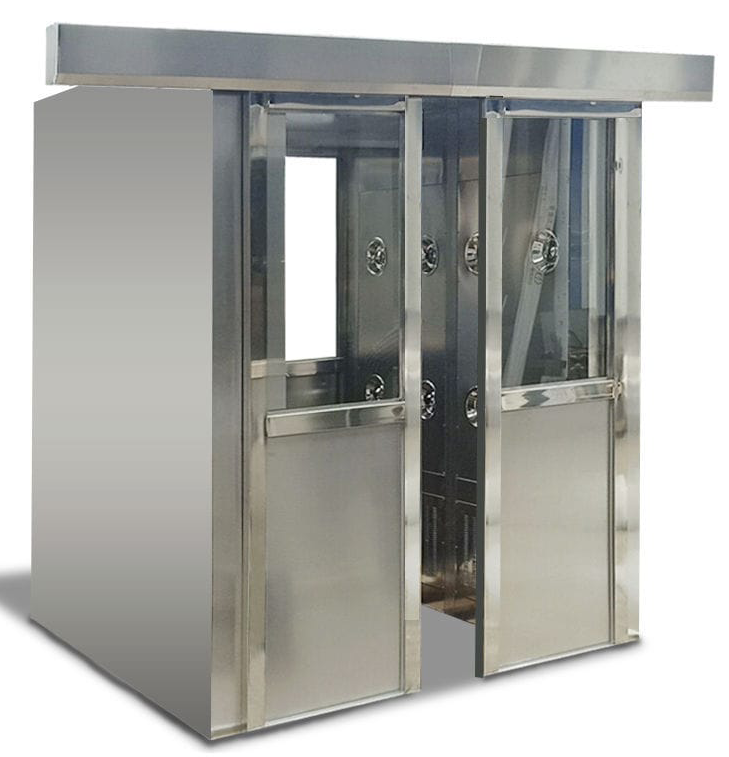

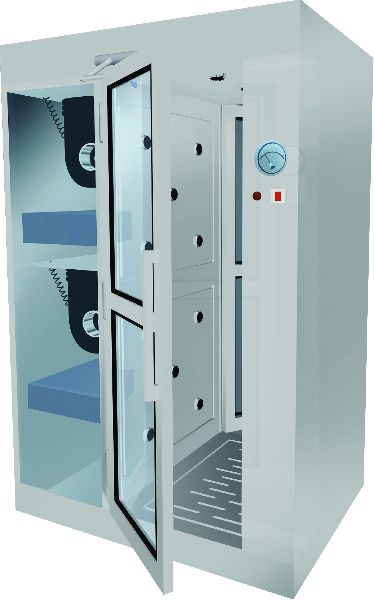

	INTERNAL DIMENSIONS			EXTERNAL DIMENSIONS
W	D	H	W	D	H
1200	2000	2000	2300	2200	2400
1200	1025	2000	2300	1225	2400
800	1025	2000	1700	1225	2400

Sr.No.	Item	Description
1)	MOC	SS 304 / SS 316 / Customised
2	HEART OF SYSTEM COMPRISES OF
2.1		Imported Minipleat HEPA Filter with hot melt technology, which conforms to EU-13/EU-14 Grade at supply position
2.2		Pharma air make Return Air Prefilter which conforms to EU 6 Grade, with efficiency of 95%down to 5 µ
2.3		Motor Blower provided are statically and dynamically balanced, Sufficient capacity and static pressure is maintained to take care of airflow requirement for entire life to HEPA
2.4		Magnehelic Differential Pressure Gauge
2.5		Tear Drop Light
2.6		ON/OFF Switches for motor & Lights.
2.7		DOP Test Port at upstream of HEPA filter
2.8		Door with flushed glass view panels and door closer
3)	Perfomance
3.1	Air cleanliness	ISO Class 5 (ISO 14644-1:1999) (E)
3.2	Air Velocities	0.45±_0.05 mps
3.3	Air Flow	Horizontal / Vertical
3.4	Noise Level	Less than 67 dB on Scale 'A' when Ambient is not greater then 55dB on Scale 'A'
3.5	Vibration Level	Minimum
4)	POWER SUPPLY	230 V AC 1- 0 50HZ

+91 9869530398

Contact Info

What is LAF equipment used for?

Optional Accessories

Optional Accessories

Optional Accessories

Optional Accessories

Optional Accessories

Dynamic Pass Box(Wall Mounted):-

Dynamic Pass Box (Floor Mounted):-

Optional Accessories

Static Pass Box (Floor Mounted):-

Static Pass Box (Wall Mounted):-

Optional Accessories

Contact Info

LAF

What is LAF equipment used for?

Laminar Air Flow Unit (Ceiling Suspended)

Optional Accessories

Laminar Air Flow Unit (Stand Mounted)

Optional Accessories

Sampling / Dispensing Booth

Optional Accessories

Garment Storage Cabinets

Bio Safety Cabinets

Optional Accessories

Horizontal Laminar Air Flow Unit

Optional Accessories

Mobile Trolley

Dynamic Pass Box(Wall Mounted)

Dynamic Pass Box(Wall Mounted):-

Dynamic Pass Box (Floor Mounted):-

Optional Accessories

Static Pass Box (Floor Mounted)

Static Pass Box (Floor Mounted):-

Static Pass Box (Wall Mounted):-

Optional Accessories

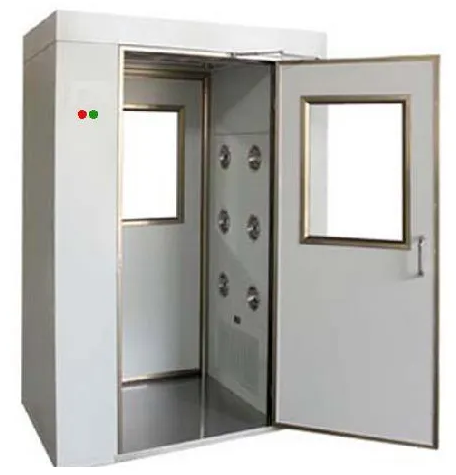

Air Shower
